Piano Hinge
MILD STEEL

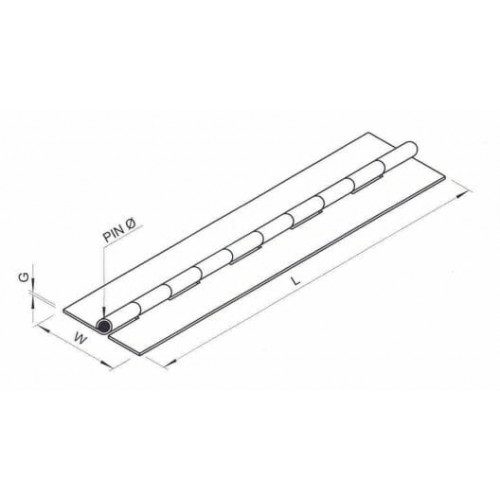

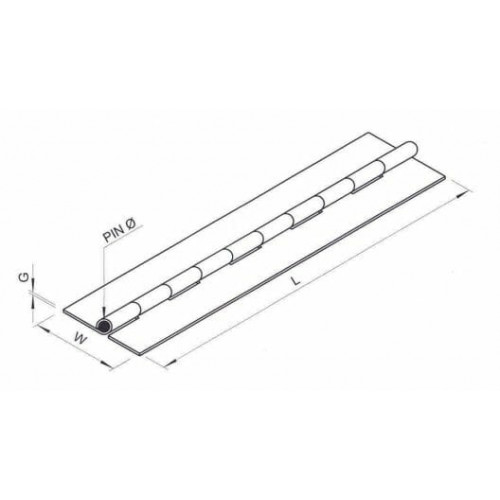

OPEN WIDTH (W)MATERIAL THICKNESS (G)STANDARD LENGTH (L)PIN DIAMETER (Ø)
25MM1.2MM1800MM3.2MM
32MM1.2MM1800MM3.2MM
38MM1.2MM1800MM3.2MM
38MM1.6MM1800MM4.5MM
50MM1.2MM1800MM3.2MM
50MM1.6MM1800MM4.5MM
57MM1.6MM2160MM4.5MM
63MM1.6MM1800MM4.5MM
76MM1.6MM2160MM4.5MM
STAINLESS STEEL
OPEN WIDTH (W)MATERIAL THICKNESS (G)STANDARD LENGTH (L)PIN DIAMETER (Ø)
27MM1.2MM1800MM2.5MM
32MM1.2MM1800MM3.2MM
38MM1.2MM1800MM3.2MM
38MM1.6MM1800MM3.2MM
50MM1.2MM1800MM3.2MM
50MM1.6MM1800MM4.5MM
57MM1.6MM2160MM4.5MM
63MM1.6MM1800MM4.5MM
76MM1.6MM2160MM4.5MM
127MM2.0MM2100MM4.5MM
GALVANISED WITH A BRASS PIN
OPEN WIDTH (W)MATERIAL THICKNESS (G)STANDARD LENGTH (L)PIN DIAMETER (Ø)
25MM1.2MM1800MM3.0MM
32MM1.2MM1800MM3.0MM
38MM1.2MM1800MM3.2MM
50MM1.2MM1800MM3.2MM
57MM1.6MM2160MM4.5MM
63MM1.6MM2160MM4.5MM
76MM1.6MM2160MM4.5MM
127MM2.5MM2100MM4.5MM

Find the right hinges for your next job at Schutties Fasteners

Custom Piano Hinge

Searching for a high-quality custom piano hinge? At Schutties Fasteners we have an extensive range of quality Australian and imported products. A family owned an operated business since 1990, we pride ourselves on delivering the best, most functional materials at affordable prices.

Piano hinges, otherwise known as continuous hinges come with a range of benefits. Compared to butt hinges, piano hinges maintain a much longer life-span, maintaining a high level of strength and precision for years after the final screw is tightened.

They are a versatile and affordable alternative, producing less noise when operated. Their durability means they are perfect for both indoor and outdoor use. Our stock of pre-drilled piano hinges (as well as plain piano hinges) come in mild steel, stainless steel and galvanized with a brass pin. Each material is available in a variety of measurements, meaning you’ll find a hinge to meet your exact needs.

To find out more about our range of piano hinges or custom continuous hinges and to compare measurements get in touch with our team today!

Schutties Fasteners deliver quality hinges you can count on

Pre Drilled Piano Hinge

As the name suggests pre-drilled piano hinges come with a set layout of holes, making for a quicker, guided installation.

Our range of custom continuous hinges can be cut to any length, allowing for a stronger installation. The tailored length ensures that the door will remain aligned with its frame, with the load evenly distributed across the length of the door. This uniform workload also makes it easier to operate the heaviest door, as no one point bears the majority of the door’s weight.

Continuous hinges are the perfect option when looking to install doors or covers to secure or private areas. Their design not only means that it is harder to remove forcefully, it also covers the space that is often present between a door and its frame, providing additional privacy.

We also offer top-quality draw slides, gas struts, adjustable fasteners, and butt hinges. With over 20 years of industry experience, our team will help you find what you need.

So for unbeatable product knowledge and outstanding, personalised service you can’t look past the experts at Schutties Fasteners. click here Click here to speak to our team of piano hinge experts or call us on 03 9553 2032.
