Name: 14/28 Gas Struts
SKU: 1912
Price: 0.10 AUD
Availability: InStock

14/28 Gas Struts

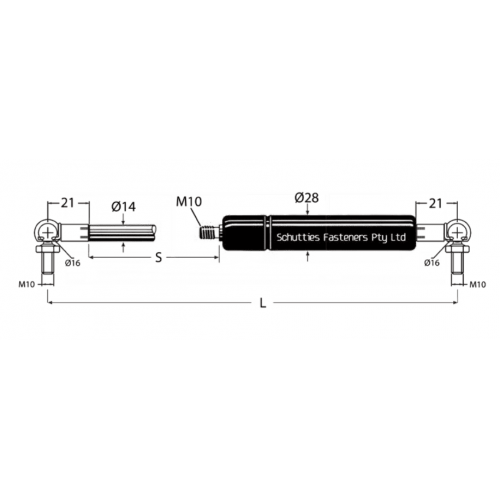

14/28 STANDARD STRUTS (14MM SHAFT – 28MM BODY)

PRODUCT CODE	EXTENDED LENGTH CTC	STROKE LENGTH	COMPRESSED LENGTH	FORCE RANGE (N)	THREAD/PITCH
SC28-195	195	60	135	50N - 2200N	M10 X 1.5
SC28-250	250	85	165	50N - 2200N	M10 X 1.5
SC28-295	295	105	190	50N - 2200N	M10 X 1.5
SC28-330	330	125	205	50N - 2200N	M10 X 1.5
SC28-375	375	145	230	50N - 2200N	M10 X 1.5
SC28-405	405	160	245	50N - 2200N	M10 X 1.5
SC28-430	430	175	255	50N - 2200N	M10 X 1.5
SC28-450	450	185	265	50N - 2200N	M8 x 1.25
SC28-485	485	200	285	50N - 2200N	M10 X 1.5
SC28-505	500	210	290	50N - 2200N	M10 X 1.5
SC28-525	525	220	305	50N - 2200N	M10 X 1.5
SC28-550	550	235	315	50N - 2200N	M10 X 1.5
SC28-600	600	260	340	50N - 2200N	M10 X 1.5
SC28-630	630	275	355	50N - 2200N	M10 X 1.5
SC28-640	640	280	360	50N - 2200N	M10 X 1.5
SC28-650	650	285	365	50N - 2200N	M10 X 1.5
SC28-670	670	295	375	50N - 2200N	M10 X 1.5
SC28-700	700	310	390	50N - 2200N	M10 X 1.5
SC28-720	720	320	400	50N - 2200N	M10 X 1.5
SC28-730	730	325	405	50N - 2200N	M10 X 1.5
SC28-750	750	335	415	50N - 2200N	M10 X 1.5
SC28-800	800	360	440	50N - 2200N	M10 X 1.5
SC28-830	830	375	455	50N - 2200N	M10 X 1.5
SC28-850	850	380	470	50N - 2200N	M10 X 1.5
SC28-885	885	400	485	50N - 2200N	M10 X 1.5
SC28-900	900	405	495	50N - 2200N	M10 X 1.5
SC22-940	940	425	515	50N - 2200N	M10 X 1.5
SC28-1100	1100	505	595	50N - 2200N	M10 X 1.5
SC28-1200	1200	555	645	50N - 2200N	M10 X 1.5

14/28 STAINLESS STEEL STRUTS (14MM SHAFT – 28MM BODY)

PRODUCT CODE	EXTENDED LENGTH CTC	STROKE LENGTH	COMPRESSED LENGTH	FORCE RANGE (N)	THREAD/PITCH
SC28-505SS	505	210	295	50N - 2000N	M10 X 1.5
SC28-710SS	710	315	395	50N - 2000N	M10 X 1.5
SC28-910SS	910	410	500	50N - 2000N	M10 X 1.5
SC28-1100SS	1100	505	595	50N - 2000N	M10 X 1.5

Category: Gas Struts
